A CUSTOMIZED COMPLEMENT TO MODERN DECKING.

Effortless style, exceptional strength—that’s Trex® Signature™ Railing.

Durable and design-minded, our powder-coated aluminum railing suits traditional and modern homeowners alike.

Available in a selection of elegant neutrals and backed with the stability only aluminum railing offers, along with Trex’s 25-year limited warranty.

Choose from round or square balusters for classic appeal. Got a great view? Consider curving your rails to mimic the sweeps of garden below, or preserve your advantage point with sleek and spare rod rail. And entertainers, take note: wide, beverage-ready cocktail railing may just be the ideal choice for you.

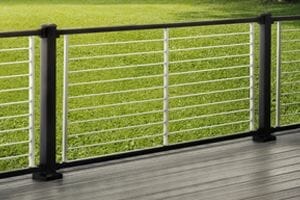

trex-signature-rod-railing-charcoal-black-aluminum-platinum

ROD RAIL

  • No special installation tools or tightening required; a quick and easy alternative to cables
  • Can be topped with a cocktail rail for added functionality

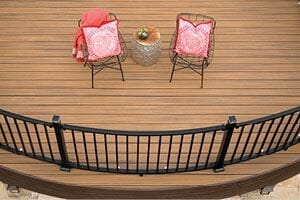

signature-railing-curved-charcoal-black-lighting-transcend-decking-havana-gold-fascia

CURVED RAIL

  • Curvable hand railing and swivel brackets unite oppositional angles
  • Custom order now, enjoy complete freedom of design later
signature-railing-charcoal-black-cocktail-rail-havana-gold

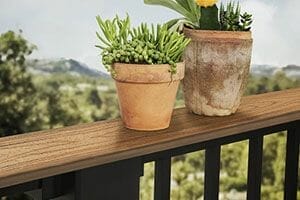

COCKTAIL RAIL

  • The perfect resting spot for planters, drinks and more
  • Choose your preferred color of Trex decking to match or contrast your deck treads

TREX® SIGNATURE™ RAILING COMPONENTS

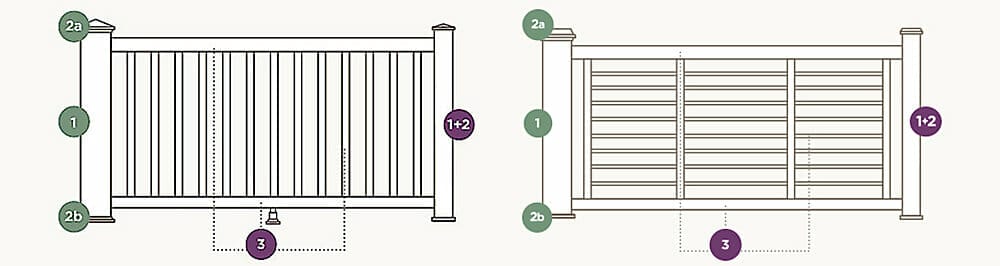

Trex® Signature™ is a 3-Step process. Choose Trex® Signature™ aluminum posts (which include a cap and skirt) for Steps 1 & 2 and pair with a rail and baluster kit or a rail and rod kit (Step 3). Or choose Trex composite post sleeves, caps and skirts for Steps 1, 2a & 2b, and then continue on to Step 3.

Either option can be topped with cocktail railing for a form-meets-function ledge.

POST & POST COMPONENTS

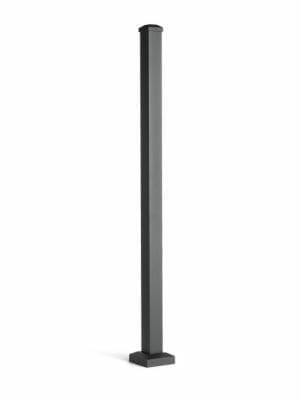

ALUMINUM POST WITH CAP & SKIRT

ALUMINUM POST WITH CAP & SKIRT

2.5” X 2.5”

ACTUAL DIMENSIONS

  • 37” Post - Horizontal: 2.5” x 2.5” x 37” (63 mm x 63 mm x 939 mm)
  • 43” Post - Horizontal: 2.5” x 2.5” x 43” (63 mm x 63 mm x 109 cm)
  • 53” Post – Stair (cut-to-length): 2.5” x 2.5” x 53” (63mm x 63 mm x 134 cm)

Aluminum posts can only be used with the Trex® Signature™ line

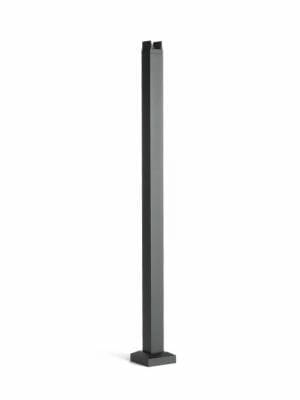

ALUMINUM CROSSOVER POST

ALUMINUM POST WITH CAP & SKIRT

2.5” X 2.5”

ACTUAL DIMENSIONS

  • 36” Crossover Post – Horizontal (includes crossover bracket): 2.5” x 2.5” x 36” (63 mm x 63 mm x 914mm)
  • 42” Crossover Post – Horizontal (includes crossover bracket): 2.5” x 2.5” x 42” (63 mm x 63 mm x 106 cm)

Aluminum posts can only be used with the Trex® Signature™ line

ALUMINUM JOIST MOUNT POST

ACTUAL EXTERNAL DIMENSIONS OF INSERT: 3.75” X 3.75” X 7”

  • 63” Aluminum post (cut-to-length)
  • Aluminum inserts with set screws
  • 1/2” HG Bolts, washers and nuts (not pictured)
  • Bolt spacing template

For use with 4x4 Composite post sleeve. Use with all Trex railing heights

RAILS, BALUSTERS & INFILLS

STAIR–RAIL KIT

3. STAIR–RAIL KIT W/ROUND OR SQUARE BALUSTERS: TOP RAIL, BOTTOM RAIL, ROUND OR SQUARE BALUSTERS, MOUNTING & SUPPORT HARDWARE

INCLUDES

  • Top Rail
  • Bottom Rail
  • Square Balusters
  • Mounting & Support Hardware

ACTUAL DIMENSIONS

  • 6’ x 36”: 72” x 36” (182 cm x 914mm)
  • 8’ x 36”: 96” x 36” (243 cm x 914mm)
  • 6’ x 42”: 72” x 42” (182 cm x 106 cm)
  • 8’ x 42”: 96” x 42” (243 cm x 106 cm)

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

HORIZONTAL – RAIL KIT

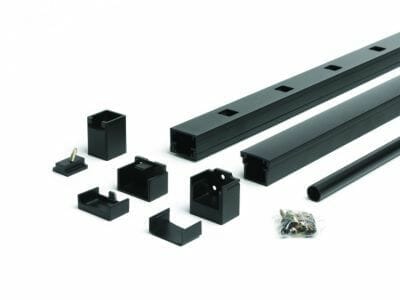

3. HORIZONTAL – RAIL KIT W/ROUND OR SQUARE BALUSTERS: TOP RAIL, BOTTOM RAIL, SQUARE OR ROUND BALUSTERS, MOUNTING & SUPPORT HARDWARE

INCLUDES

  • Top Rail
  • Bottom Rail
  • Round Balusters
  • Mounting & Support Hardware

ACTUAL DIMENSIONS

  • 6’ x 36”: 72” x 36” (182 cm x 914 mm)
  • 8’ x 36”: 96” x 36” (243 cm x 914 mm)
  • 6’ x 42”: 72” x 42” (182 cm x 106 cm)
  • 8’ x 42”: 96” x 42” (243 cm x 106 cm)

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal and stair applications.

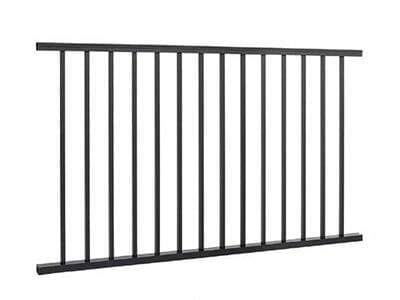

TREX® SIGNATURE™ RAILING PANEL

3. TREX® SIGNATURE™ RAILING PANEL

INCLUDES

  • 1 Pallet of Trex® Signature™ Railing Panels (20 panels)
  • Trex® Signature™ Railing Mounting Hardware must be ordered separately.

ACTUAL DIMENSIONS

  • 6’ x 36”: 72” x 36” (182 cm x 914 mm)
  • 8’ x 36”: 96” x 36” (243 cm x 914 mm)
  • 6’ x 42”: 72” x 42” (182 cm x 106 cm)
  • 8’ x 42”: 96” x 42” (243 cm x 106 cm)

Available in 6’ or 8’ lengths and 36” or 42” Rail height for horizontal applications. Only offered with square aluminum balusters.

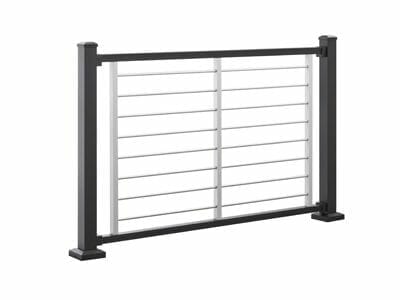

3. RAIL & ROD KIT

3. RAIL & ROD KIT

INCLUDES

  • Top and Bottom Rail
  • Vertical Supports
  • Aluminum Rods
  • Hardware and Bracket Pack
  • Anti Rattle Strips

ACTUAL DIMENSIONS

  • 6’ x 36” (72-in x 36-in (182 cm x 914 mm)) Rail & Rod Kit - Horizontal or Stair
  • 8’ x 36” (96-in x 36-in (243 cm x 914 mm)) Rail & Rod Kit - Horizontal or Stair
  • 6’ x 42” (72-in x 42-in (182 cm x 106 cm)) Rail & Rod Kit - Horizontal or Stair
  • 8’ x 42” (96-in x 42-in (243 cm x 106 cm)) Rail & Rod Kit - Horizontal or Stair

Available in Charcoal Black Rails and Platinum Rods or Bronze Rails and Platinum Rods.

ACCESSORY KITS

FIXED BRACKET

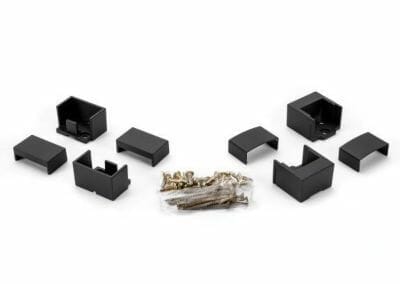

FIXED BRACKET (4-PACK) – HORIZONTAL

INCLUDES

  • Qty (2) Fixed Top Rail Bracket and Cover–Horizontal
  • Qty (2) Fixed Bottom Rail Bracket and Cover–Horizontal
  • Qty (1) Fastener Pack

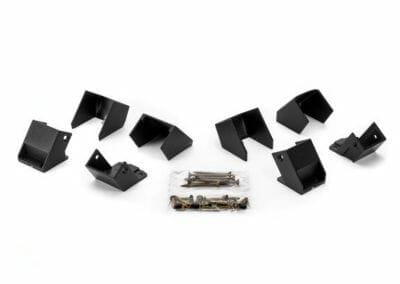

FIXED BRACKET

FIXED BRACKET (4-PACK) – STAIR

INCLUDES

  • Qty (1) Fixed Top Rail Bracket 1 and Cover–Stair
  • Qty (1) Fixed Top Rail Bracket 2 and Cover–Stair
  • Qty (1) Fixed Bottom Rail Bracket 1 and Cover–Stair
  • Qty (1) Fixed Bottom Rail Bracket 2 and Cover–Stair
  • Qty (1) Fastener Pack
SWIVEL CROSSOVER

SWIVEL CROSSOVER BRACKET KIT – STAIR

INCLUDES

  • Qty (1) Swivel Crossover Bracket–Stair
  • Qty (2) Post to Bracket Fasteners
SWIVEL BRACKET

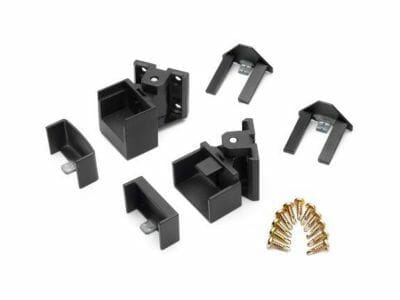

SWIVEL BRACKET – HORIZONTAL – HORIZONTAL

INCLUDES

  • Qty (1) Swivel Top Rail Bracket and Cover–Horizontal
  • Qty (1) Swivel Bottom Rail Bracket and Cover–Horizontal
  • Qty (2) Fastener Covers
  • Qty (1) Fastener Pack

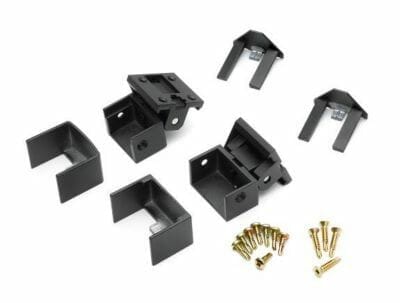

SWIVEL BRACKET

SWIVEL BRACKET – STAIR

INCLUDES

  • Qty (1) Swivel Top Rail Bracket and Cover–Stair
  • Qty (1) Swivel Bottom Rail Bracket and Cover–Stair
  • Qty (2) Fastener Covers
  • Qty (1) Fastener Pack
COMPOUND SWIVEL BRACKET

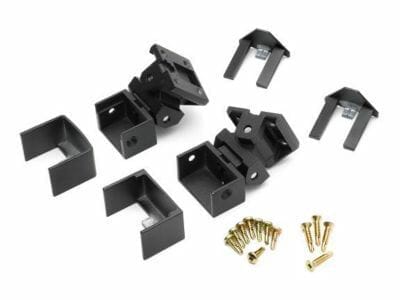

COMPOUND SWIVEL BRACKET – STAIR

INCLUDES

  • Qty (1) Compound Swivel Top Rail Bracket and Cover–Stair
  • Qty (1) Compound Swivel Bottom Rail Bracket and Cover–Stair
  • Qty (2) Fastener Covers
  • Qty (1) Fastener Pack
FOOT BLOCK

ALUMINUM FOOTBLOCK

INCLUDES

  • Qty (1) Footblock
  • Qty (1) Footblock Anchor and fastener
KIT

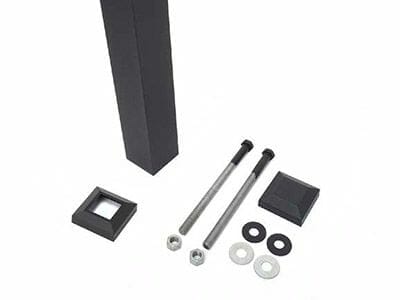

JOIST MOUNT POST FOR ELEVATIONS AND WOOD SUBSTRUCTURE

INCLUDES

  • Qty (1) 63” Aluminum post (cut-to-length)
  • Qty (1) Aluminum Post Cap
  • Qty (1) Aluminum Post Skirt
  • Qty (2) HG 1/2” bolts, washers (coated)
  • Qty (2) HG 1/2” Washers & nuts (uncoated)
  • Qty (1) Bolt spacing template
RAIL POST BLOCK

ELEVATIONS RAIL POST BLOCKING

INCLUDES

  • Qty 10/box

WORKS WELL WITH

ALL TREX DECKING

Trex® Signature™ Railing pairs well with any of our decking colors, lending a contemporary edge to an otherwise classic outdoor room.

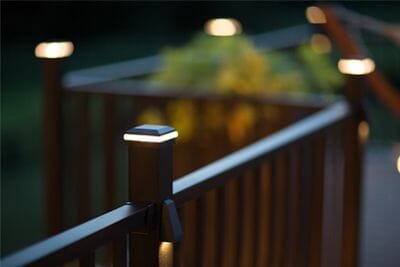

DECK LIGHTING

On railing posts. In stair risers. Along that shaded span of deck boards. Install deck lighting where you please to achieve the ambience you want.

ALUMINUM GATES

Our sleek aluminum gates are designed to blend seamlessly with Trex® Signature™ Railing, while offering an extra level of safety, strength and accessibility.
