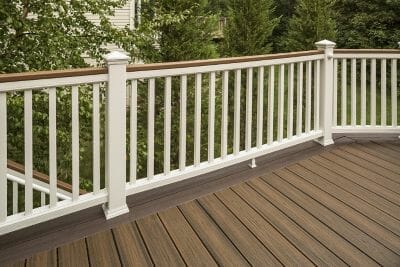

TREX TRANSCEND® RAILING
Our highest-performance railing option offers more colors in more component profiles than any railing out there. Won’t rot, warp, peel or splinter (which trumps sanding row after row of wooden balusters any day) and it never needs painting or staining, ever. Talk about luxurious.
HIGH PERFORMANCE
- Stands firm with a strong, sturdy look and feel
- Built with the same incredible durability as Transcend decking–won’t rot, warp, peel or splinter
PERENNIAL BEAUTY
- Modular components let you mix and match your customized look with any Trex railing line
- Pairs seamlessly with Transcend decking…and just as beautifully with any other Trex decking line
TREX THROUGH AND THROUGH
- Contains a minimum of 40% recycled material
- Backed by the Trex 25-Year Limited Residential Warranty

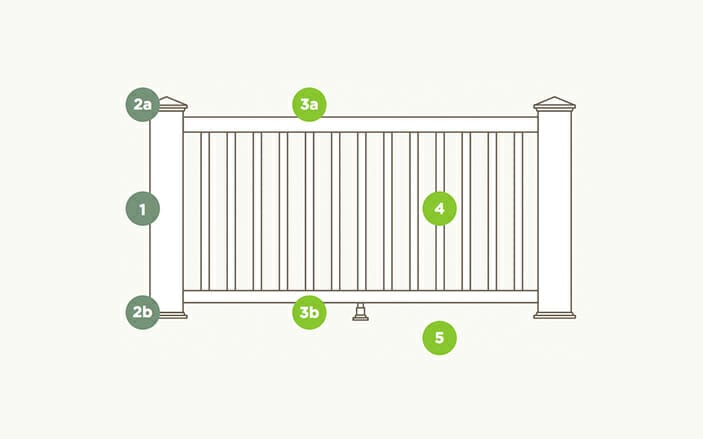

TRANSCEND® COMPONENTS
Transcend is either a 5-step or 3-step process. Choose Trex post sleeves, caps and skirts (steps 1 & 2). Then choose each component separately for a custom design (steps 3–5).
1. Post Sleeve
2a. Post Sleeve Cap
2b. Post Sleet Skirt
3a. Top Rail
3b. Bottom Rail
4. Balusters
5. Accessory Infill Kit
Transcend also offers a simple, 3-step option if you choose a rail & baluster kit in Classic White.
POST & POST COMPONENTS
1. 4” POST SLEEVE
4” X 4” X 39”/108”
ACTUAL EXTERNAL DIMENSIONS:
- 4.45” x 4.45” x 40” (113 mm x 113 mm x 101 cm)
- 4.45” x 4.45” x 108” (113 mm x 113 mm x 274 cm)
Fits over 4”x4” Pressure-Treated Post
1. 6” POST SLEEVE
6” X 6” X 39”/108”
ACTUAL EXTERNAL DIMENSIONS:
- 5.5” x 5.5” x 39” (139 mm x 139 mm x 990 mm)
- 5.5” x 5.5” x 108” (139 mm x 139 mm x 274 cm)
Hollow sleeve that fits over a solid, pressure-treated post or post mount
Fits over 4”x4” Pressure-Treated Post
Available in Classic White only.
2A. FLAT POST SLEEVE CAP
ACTUAL EXTERNAL DIMENSIONS:
- 4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
- 6” x 6”: 5.55” x 5.55” (140 mm x 140 mm)
12 per box. Cap topping each post is the decorative finish that also withstands the weather.
6” Available in Classic White only.
2A. PYRAMID POST SLEEVE CAP
ACTUAL EXTERNAL DIMENSIONS:
- 4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
- 6” x 6”: 5.55” x 5.55” (140 mm x 140 mm)
12 per box. Cap topping each post is the decorative finish that also withstands the weather.
6” Available in Classic White only.
2B. POST SLEEVE SKIRT
ACTUAL EXTERNAL DIMENSIONS:
- 4” x 4”: 4.55” x 4.55” (115 mm x 115 mm)
- 6” x 6”: 5.55” x 5.55” (140 mm x 140 mm)
12 per box. Finishing piece at the base of the post that covers any cuts where the decking and railing meet. Usually coordinates with the cap.
6” Available in Classic White only.
RAILS, BALUSTERS & INFILLS
3A. CROWN TOP RAIL
ACTUAL LENGTH:
- 6’ Rail:67.5” (171 cm)
- 8’ Rail:91.5” (232 cm)
Horizontal rail attached to the top of the balusters and the posts
3A/3B. TRANSCEND UNIVERSAL TOP/BOTTOM RAIL
ACTUAL LENGTH:
- 6’ Rail:67.5” (171 cm)
- 8’ Rail:91.5” (232 cm)
Horizontal rail attached to both the top and bottom of the balusters and the posts; the top rail portion serves as base for the installation of a deck board that acts as a cocktail rail
4. SQUARE BALUSTER
ACTUAL DIMENSIONS:
- 36” Rail Height: 1.418” x 1.418” x 30.375” (36 mm x 36 mm x 771 mm)
- 42” Rail Height: 1.418” x 1.418” x 36.375” (36 mm x 36 mm x 923 mm)
16 per pack Vertical rungs–sometimes called spindles–that fill the space between posts
4. ROUND ALUMINUM BALUSTER
ACTUAL DIMENSIONS:
- 36” Rail Height: .75” x 30.25” (19 mm x 768 mm)
- 42” Rail Height: .75” x 36.25” (19 mm x 920 mm)
20 per pack Vertical rungs–sometimes called spindles–that fill the space between posts
4. SQUARE ALUMINUM BALUSTER
ACTUAL DIMENSIONS:
- 36” Rail Height: .75” x 30.25” (19 mm x 768 mm)
- 42” Rail Height: .75” x 36.25” (19 mm x 920 mm)
20 per pack Vertical rungs–sometimes called spindles–that fill the space between posts

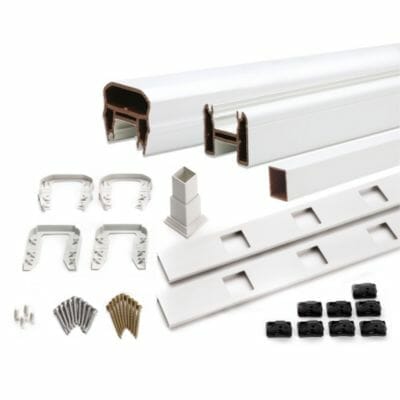

3. RAIL & BALUSTER KIT
Includes: Crown Top Rail, Universal Bottom Rail, Square Balusters, Adjustable Foot Block, Hardware Pack
\For a simple, 3-step option choose Transcend as a rail & baluster kit.
- 6’ x 36” Rail & Baluster Kit – Horizontal or Stair
- 8’ x 36” Rail & Baluster Kit – Horizontal or Stair
Actual lengths: 6’ Rail: 67.5” (171cm); 8’ Rail: 91.5” (232 cm)
Available in Classic White only.
5. GLASS PANEL ACCESSORY KIT
- 6’ Rail: 67.5” (171 cm)
Glass panel mounting hardware; glass panel not included
5. ACCESSORY INFILL KIT
Includes: 2 Baluster Spacers, Adjustable Foot Block, Mounting Hardware
Actual lengths: 6’ Rail: 67.5” (171 cm); 8’ Rail: 91.5” (232 cm)
Available in 6’ and 8’ lengths for square, colonial and round balusters; horizontal and stair applications.
ACCESSORY KITS
MOUNTING HARDWARE FOR CUT RAILS—HORIZONTAL
CONTAINS:
- Qty (2) Crown Top Rail Gaskets—Horizontal
- Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal
- Qty (4) RSB Rail Brackets
- Qty (8) Rail to Bracket Fasteners—Horizontal
- Qty (8) Rail to Post Fasteners
- Qty (4) Screw Tip Covers
MOUNTING HARDWARE FOR CUT RAILS—STAIR
CONTAINS:
- Qty (1) Crown Top 1 Rail Gaskets—Stair
- Qty (1) Crown Top 2 Rail Gaskets—Stair
- Qty (2) Universal Top/Bottom 1 Rail Gaskets—Stair
- Qty (2) Universal Top/Bottom 2 Rail Gaskets—Stair
- Qty (8) RSB Rail Brackets
- Qty (8) Rail to Bracket Fasteners— Stair
- Qty (8) Rail to Post Fasteners
- Qty (4) Screw Tip Covers
RSB BRACKET PACK—HORIZONTAL
CONTAINS:
- Qty (4) RSB Rail Brackets
- Qty (8) Rail to Bracket Fasteners—Horizontal
- Qty (8) Rail to Post Fasteners
RSB BRACKET PACK—HORIZONTAL
CONTAINS:
- Qty (8) RSB Rail Brackets
- Qty (8) Rail to Bracket Fasteners—Stair
- Qty (8) Rail to Post Fasteners
0 DEGREE RAIL GASKET PACK—HORIZONTAL
CONTAINS:
- Qty (2) Crown Top Rail Gaskets—Horizontal
- Qty (4) Universal Top/Bottom Rail Gaskets—Horizontal
0 DEGREE RAIL GASKET PACK—STAIR
CONTAINS:
- Qty (1) Crown Top 1 Rail Gaskets—Stair
- Qty (1) Crown Top 2 Rail Gaskets—Stair
- Qty (2) Universal Top/Bottom 1 Rail Gaskets—Stair
- Qty (2) Universal Top/Bottom 2 Rail Gaskets—Stair
22.5 DEGREE RAIL GASKET PACK—HORIZONTAL
CONTAINS:
- Qty (2) Crown Top Rail Gaskets—22.5
- Qty (4) Universal Top/Bottom 1 Rail Gaskets—22.5
45 DEGREE ”BIRDS-MOUTH” RAIL GASKET PACK—HORIZONTAL
CONTAINS:
- Qty (4) 45degree Adapters for RSB Rail Brackets
- Qty (2) Crown Top Rail Birds Mouth Gaskets—45
- Qty (4) Universal Top/Bottom Rail Birds Mouth Gaskets—45
45 DEGREE RAIL GASKET PACK—HORIZONTAL
CROWN RAIL CONTAINS:
- Qty (2) Crown Top Rail Gaskets- 45
- Qty (4) Universal Top/Bottom Rail Gaskets- 45
ADJUSTABLE FOOTBLOCK
CONTAINS:
- Qty (1) Adjustable Footblock
- Qty (1) Base and Base Fastener
- Qty (1) Locking Fastener and Screw Cap
WORKS WELL WITH
TRANSCEND DECKING
In seven matching colors, Transcend railing and decking are a flawless pair, inspiring both monochromatic and complementary designs all with the same high-performance, low-maintenance finish.

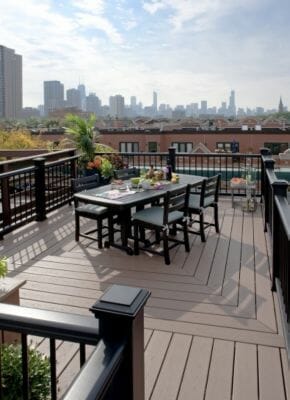

THE METRO COLLECTION
Roof deck? Railing. And the sturdier the better. Of course, if it’s the cosmopolitan look you’re after, turn to Transcend deck railing for our high-performance yet low-profile lengths in–what else?–chic black.

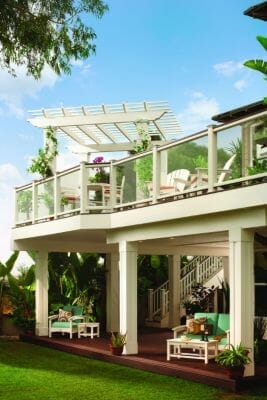

THE TROPICAL COLLECTION
The islands inspire so much: great views, breezy gatherings. To take a cue, try glass panels* instead of balusters for a nearly invisible look, then swap in an aptly named cocktail rail for a traditional handrail and let the gatherings begin.
*glass panels sold separately
